A new sensor in the house (Allegro A3214 Hall-Effect switch)
Moderator: Mdamen
A new sensor in the house (Allegro A3214 Hall-Effect switch)

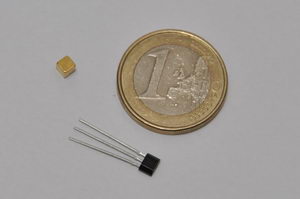

I've been testing a new sensor during the last 2 days, which I think is especially useful for Arduino fans who would like to build their own Door & Window sensors. The results so far are very promising! Check it out:
http://blog.hekkers.net/2010/12/04/the- ... ct-switch/
http://blog.hekkers.net/2010/12/04/the- ... ct-switch/
Re: A new sensor in the house (Allegro A3214 Hall-Effect switch)
I use this exact same sensor to measure my gas consumption, way better then the CNY70 optical sensor that i was using before.
Re: A new sensor in the house (Allegro A3214 Hall-Effect switch)
Robert,
Three questions little related to this:
- The jeenode have multiple inputs. When 'door' sensors to be used, the price for a jeenode per sensor is ofcourse higher than using more of those sensors connected to one jeenode. What is your opinion about this. Would you use more of these sensors connected to a jeenode, a jeenode per sensor or a jeenode with multiple different sensors (like for in the same room also a temp., humidity, light, etc...) ? What is your installation at the moment?
- Are there smaller jeenodes (like less inputs?) ? If i look at the shop there is the JeeSMD also less price but i don't have the knowledge to answer the question myself at this time.
- Will you use all the jeenodes with the xbee modules? Or considering also to use the jeenode solution?
Three questions little related to this:
- The jeenode have multiple inputs. When 'door' sensors to be used, the price for a jeenode per sensor is ofcourse higher than using more of those sensors connected to one jeenode. What is your opinion about this. Would you use more of these sensors connected to a jeenode, a jeenode per sensor or a jeenode with multiple different sensors (like for in the same room also a temp., humidity, light, etc...) ? What is your installation at the moment?
- Are there smaller jeenodes (like less inputs?) ? If i look at the shop there is the JeeSMD also less price but i don't have the knowledge to answer the question myself at this time.
- Will you use all the jeenodes with the xbee modules? Or considering also to use the jeenode solution?
Alexander
Re: A new sensor in the house (Allegro A3214 Hall-Effect switch)
Alexander,
And yes, if I can, I would also combine different types of sensors; all depends on the sensor need per location and whether it's technically possible to do so. Each sensor will be customized with those criteria in mind.
BTW, think of this: this new sensor (or more) connected to a XBee... why not? There's no real "processing" or local communication (I2C for example) with the sensor, all you need is a digital input. I still have to look into things like the need for local debouncing, and the use of a "bare" XBee for this.
That's that "next step" I mentioned
I would certainly use more sensors per JeeNode if I can make all those sensors wake up the JeeNode from power down mode and be able to distinguish which sensor triggered this wake up. I have to look into that. The passage (dutch:overloop) would be the perfect place for 1 JeeNode for 4 doors!- The jeenode have multiple inputs. When 'door' sensors to be used, the price for a jeenode per sensor is ofcourse higher than using more of those sensors connected to one jeenode. What is your opinion about this. Would you use more of these sensors connected to a jeenode, a jeenode per sensor or a jeenode with multiple different sensors (like for in the same room also a temp., humidity, light, etc...) ? What is your installation at the moment?
And yes, if I can, I would also combine different types of sensors; all depends on the sensor need per location and whether it's technically possible to do so. Each sensor will be customized with those criteria in mind.
The JeeSMD (http://cafe.jeelabs.net/lab/js2/) has the same amount of ports as a JeeNode (same number of ports), is smaller, however it doesn't have radio on board (but this can be connected IIRC). So to answer your question: Yes and No.- Are there smaller jeenodes (like less inputs?) ? If i look at the shop there is the JeeSMD also less price but i don't have the knowledge to answer the question myself at this time.
All the JeeNodes I have right now, also have XBees connected to them and they are doing fine; I see no need to introduce another RF medium.- Will you use all the jeenodes with the xbee modules? Or considering also to use the jeenode solution?
BTW, think of this: this new sensor (or more) connected to a XBee... why not? There's no real "processing" or local communication (I2C for example) with the sensor, all you need is a digital input. I still have to look into things like the need for local debouncing, and the use of a "bare" XBee for this.
That's that "next step" I mentioned
Re: A new sensor in the house (Allegro A3214 Hall-Effect switch)
"and be able to distinguish which sensor triggered this wake up"Digit wrote:I would certainly use more sensors per JeeNode if I can make all those sensors wake up the JeeNode from power down mode and be able to distinguish which sensor triggered this wake up. I have to look into that. The passage (dutch:overloop) would be the perfect place for 1 JeeNode for 4 doors!
And yes, if I can, I would also combine different types of sensors; all depends on the sensor need per location and whether it's technically possible to do so. Each sensor will be customized with those criteria in mind.
That would be nice ofcourse, but you can send value/status of all the sensors when the JeeNode has been woken up? Not a nice situation ofcourse, but I would think this would be a nice to have?
I'm curious how you would see those sensors connected to the JeeNode. You would all those cables running through your room(s). What will be the impact of long wires? Like every cable has its resistence. Can you test this with for example this sensor? Or would you already have the answer (based on experience fe)?
Okay, so the JeeSMD could be connected to a XBee modules? Is this on your list to do? I read you need a programmer for the chip. So more initial costs but lower cost on the "Jeenode" and smaller (less energy consumption?).Digit wrote: The JeeSMD (http://cafe.jeelabs.net/lab/js2/) has the same amount of ports as a JeeNode (same number of ports), is smaller, however it doesn't have radio on board (but this can be connected IIRC). So to answer your question: Yes and No.
No i agree with you if you would do all those to be installed JeeNodes. I would prefer XBee cause of its technology, but it will cost also more. But like JC said in one of his blog posts: Maybe you would use the RF technology JeeNodes uses for sensors where a bi-directional signal isn't needed and use the XBee technology for switches or others (alarm etc).Digit wrote: All the JeeNodes I have right now, also have XBees connected to them and they are
doing fine; I see no need to introduce another RF medium.
Digit wrote: BTW, think of this: this new sensor (or more) connected to a XBee... why not? There's no real "processing" or local communication (I2C for example) with the sensor, all you need is a digital input. I still have to look into things like the need for local debouncing, and the use of a "bare" XBee for this.
That's that "next step" I mentioned
Alexander
Re: A new sensor in the house (Allegro A3214 Hall-Effect switch)
I could, but I would rather not if I can; it's just the way I 'work'"and be able to distinguish which sensor triggered this wake up"
That would be nice ofcourse, but you can send value/status of all the sensors when the JeeNode has been woken up?
I'm going to that's for sure, before I install anything.Can you test this with for example this sensor?
Or would you already have the answer (based on experience fe)?
Not for now. Maybe I will, after examining some door frames, the available space etc.Okay, so the JeeSMD could be connected to a XBee modules? Is this on your list to do?
If a JeeSMD is the better choice, well, then I will need one
I already have an ISP programmer, so additional costs have already been made (but not with the JeeSMD in mind).I read you need a programmer for the chip.
So more initial costs but lower cost on the "Jeenode" and smaller (less energy consumption?).
I know, I'm spending more on wireless than I really need to; people always ask me why I chose this "weird" combination....But like JC said in one of his blog posts: Maybe you would use the RF technology JeeNodes uses for sensors where a bi-directional signal isn't
needed and use the XBee technology for switches or others (alarm etc).
My choice wasn't based on writing down lists of pro's and con's, weighing the benefits of RF12 vs. XBee etc. etc.; none of that.
It's as simple as this: after the summer of '09 I wanted to do 2 things: get to know the Arduino and also the XBees. It didn't take long before I found out that I could combine these 2, so I did. With both RF12 modules as well as XBee you can create great things, I'm sure of that.
The primary thing that matters to me, is that it's all about having fun with what you do; some prefer PlayMobil over LEGO; I prefer XBee over RF12; that's just the way it is, nothing else
First thing I need to do right now is order some XBees, cause I'm out of stock right now!
Re: A new sensor in the house (Allegro A3214 Hall-Effect switch)
Robert,
looks like you becoming pretty experienced with XBee
Would an XBee module be able of having a temp,ldr,hall-effect,humidity and pir sensor connected to it where we could poll temp,ldr,humidity and auto transmit (event/interrupt) on the pir and hall-effect sensor? Reason I ask is because i'm looking for something smaller/cheaper then an arduino-xbee combination.
edit: To answer my own question, it seems possible when reading this thread: forums.digi.com/support/forum/viewthrea ... 8_offset,0
looks like you becoming pretty experienced with XBee
Would an XBee module be able of having a temp,ldr,hall-effect,humidity and pir sensor connected to it where we could poll temp,ldr,humidity and auto transmit (event/interrupt) on the pir and hall-effect sensor? Reason I ask is because i'm looking for something smaller/cheaper then an arduino-xbee combination.
edit: To answer my own question, it seems possible when reading this thread: forums.digi.com/support/forum/viewthrea ... 8_offset,0
Re: A new sensor in the house (Allegro A3214 Hall-Effect switch)
That's a nice one. I thought it was basicly a send-receive device. So that would take out the JeeNode modules for our purposes (sensors)?
Alexander
Re: A new sensor in the house (Allegro A3214 Hall-Effect switch)
Alexander,
looks like that. Will order a couple xbees, play around and keep you posted.
Eric
looks like that. Will order a couple xbees, play around and keep you posted.
Eric
Re: A new sensor in the house (Allegro A3214 Hall-Effect switch)
Guys,
Remember that you cannot write code and execute that on an XBee. So anything that is more complex than Analog Input or Digital Input is useless...
So forget about talking to (for example) a SHT11 by only using an Xbee. You'll need 'local' processing ability in that case.
Have you ever considered the Arduino FIO? http://arduino.cc/en/Main/ArduinoBoardFio
I'm ordering one to play with it; FF and things like wirelessly uploading/upgrading sketches are worth investigating
Remember that you cannot write code and execute that on an XBee. So anything that is more complex than Analog Input or Digital Input is useless...
So forget about talking to (for example) a SHT11 by only using an Xbee. You'll need 'local' processing ability in that case.
Have you ever considered the Arduino FIO? http://arduino.cc/en/Main/ArduinoBoardFio
I'm ordering one to play with it; FF and things like wirelessly uploading/upgrading sketches are worth investigating
Re: A new sensor in the house (Allegro A3214 Hall-Effect switch)
There are also analog humidity sensors like this one: Honeywell HIH-5030
Brief specs:
Honeywell HIH-5030 "surface mount" humidity sensor.
Digikey Part # 480-3294-1-ND
Cost $11.23
Voltage range 2.7 -5.5V
Accuracy +-3% RH
Humidity Range 0 - 100 %RH
Output linear voltage --> VOUT=(VSUPPLY)(0.00636(sensor RH) + 0.1515), typical at 25 °C
Eric
Brief specs:
Honeywell HIH-5030 "surface mount" humidity sensor.
Digikey Part # 480-3294-1-ND
Cost $11.23
Voltage range 2.7 -5.5V
Accuracy +-3% RH
Humidity Range 0 - 100 %RH
Output linear voltage --> VOUT=(VSUPPLY)(0.00636(sensor RH) + 0.1515), typical at 25 °C
Eric
Re: A new sensor in the house (Allegro A3214 Hall-Effect switch)
Small update:
I tested with a solitary XBee (as in without ATmega) and this sensor; it works, I see samples coming in when the magnet is moved.
This is with the XBee always-on, more tests will follow.
But first I have to write some code, cause I don't support the ZigBee IO Data Sample Rx Indicator frame type in my system yet.
I tested with a solitary XBee (as in without ATmega) and this sensor; it works, I see samples coming in when the magnet is moved.
This is with the XBee always-on, more tests will follow.
But first I have to write some code, cause I don't support the ZigBee IO Data Sample Rx Indicator frame type in my system yet.
