Repository - Sample Images of Cameras

[Bwired]

Mobotix MD10
Highly compressed, resolution at 1280*960

[Bwired]

Bwired Mobotix MD10 at night.
[/img]

Bwired Mobotix at night


[Esteban]

LYIPC-08B

Specs:
- PC-CAM + IP-CAM
- M-JPEG
- Install ActiveX Control: yes
- PTZ [Pan/Tilt/Zoom]
- 20 fps for VGA
- 300K Pixels CMOS Sensor
- Motion Image Resolution: 640 × 480
- Auto Exposure
- Auto White Balance
- Auto Gain Contro
- HTTP/DHCP/IP/TCP/UDP/DDNS
- Operation Voltage: 5.0V
- Power Consumption: 500mA

Product link:
http://www.ec66.com/ad_IPCamera/index.asp" onclick="window.open(this.href);return false;


Day Image:


Credits: drmacchi

[Esteban]

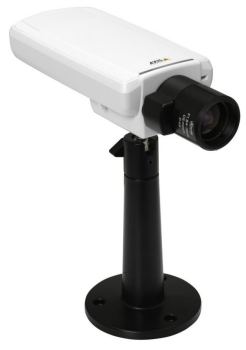

Axis p1346


Comments:
-Looks like it applies some sort of 'Median Cut' filter to the image, cutting down on noise, but alson on image detail.

Specs:
http://www.axis.com/files/datasheet/ds_ ... 012_lo.pdf

- 0.6 lux (color) 0.08 (B&W)
- max res: 2048x1536px
- varifocal
- cs lens mount
- two-way audio
- 30fps in 2MP and HDTV 1080p, 20fps in 3MP mode.

Manual:
http://www.axis.com/files/manuals/um_p1 ... n_1007.pdf

Day image:


Full res (no recompression) piece of image showing 'Median Cut'-type filtering, especially visible in the trees:


Night Image:


Credits: AenG

[drmacchi]

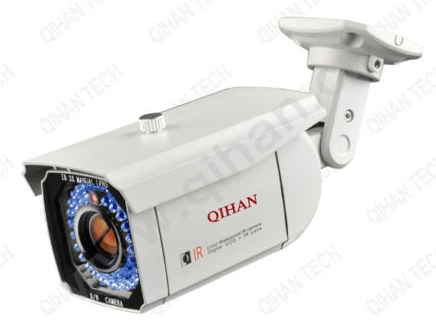

Qihan VS-1163N SNH-2HQ1

Specs:
http://www.qihan.cn/en/pdf/Waterproof/VS-1163N.pdf
http://www.qihan.cn/en/contents/11/80.html

- 540TVL, PAL:752x582 / NTSC:768x494
- 1/3‘’Sony Super HAD CCD
- Varifocal 4-9mm
- 48 IR LEDs
- Operating temperatures -10℃~ +50℃
- Storage temperatures -20℃~ +60℃
- IR reach: 30-45 Meters
- IP65
- Signal to Noise Ratio: >52dB
- 1/50(1/60)—1/100,000(Sec.)
- Dimensions: 270*164*142mm
- Weight: 1500g
- BNC camera bought on ebay for 149 euro.

http://cgi.ebay.it/Telecamera-TVCC-540T ... 8465962875


Manual zoom, good IR. resolution is 358 or 640, camera is BNC so this is the resolution done by the DVR where are connected 9 BNC cameras. Note that outside it's completly dark! No lights, only trees and forest.

Dayshot at 358px, with rain:


Nightshot at 358px:


Nightshot at 640px:


I'm also upgrading the other cameras system and i bought one of these , very cheap, but it seems interesting. 1280 resolution , wifi etc..
http://www.grand.com.tw/pdf/SpillResistant_camera.pdf

Screenshots of wifi cam As soon as possible. Ciao !

[Esteban]

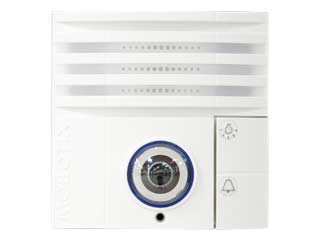

Mobotix T24M-Sec-D11/ N11 (Video Doorbell)

Comments:
- SIP support
- 180 degree FOV
- 2048x1536 Color (D11) or 1280x960 Black&White night-version (N11).
- Integrated DVR
- IP65
- Sensitivity: 1lux(t=1/60s)/ 0.05lux(t=1/1s) (D11 model) / 0.1lux(t=1/60s)/ 0.005lux(t=1/1s) (N11 model)
- Virtual PTZ possible
- 20/30fps depending on resolution used.


Manual:
http://www.mobotix.com/eng_GB/file/2628 ... 100614.pdf


Daytime shots 'D11' model:

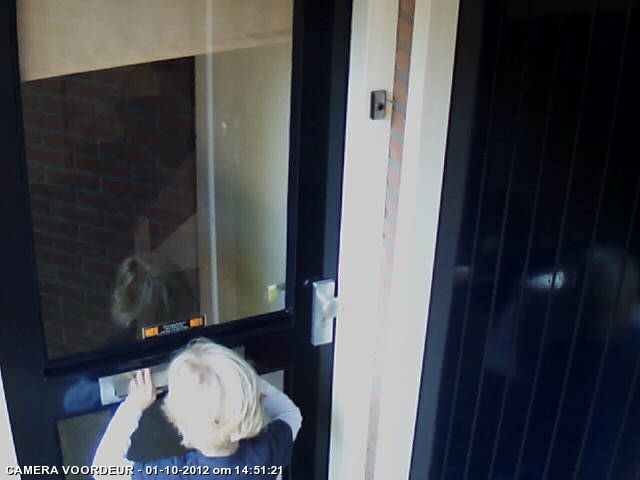

Somebody at the door


Full sensor coverage



Virtual PTZ


Nighttime shots: (none available)

More information:
http://www.networkwebcams.com/ip-camera ... ment-23966




(@1m50s)


Credits: networkwebcams.com & Thorsten@ knx-user-forum.de

[Bwired]

The T24 is for a while on my list, great device!

[jrkalf]

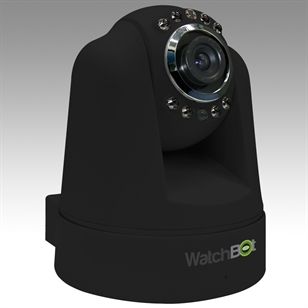

WatchBot

Comments:
- IR leds
- Wifi or Ethernet
- Two-way audio
- Pan, Tilt


Manual:
Revision 4 - januari 2012: http://www.mygadgetsandgifts.co.uk/watc ... de_eng.pdf
Revision 3 - December 2011: http://www.mygadgetsandgifts.co.uk/watc ... ec2011.pdf


Up close, 20cm range, full dark, image taken by the watchbot (foscam rebranded FI8908W or FI8918W, still unknown)

[Edwin2008]

Elro C903IP

Comments:
- Wireless/ Wired : Both
- Wireless digital/analog : Digital
- Camerasensor : ¼” CMOS
- Resolution (Pixels x Pixels) : 320x240(QVGA), 640x480 (VGA)
- Lens : f:6mm, F:2,0
- Light sensitivity (Lux) : 0,5Lux
- Nachtvision LEDs : 24x IR LEDs
- Videoformat : MJPEG
- Adjustable framerate : 30fps@QVGA, 15fps@VGA
- Power supply : 230VAC/5VDC, 2,0A
- Power consumption : <5W
- Operational temperature (°C) : -10° ~ + 40°

Manual:
http://www.elro.eu/uploads/products/man ... Manual.pdf


Only disadvantage is the large connection plug. Needs a hole of appr. 35mm

Day


Night


More Information:
http://www.elro.eu/products/category/be ... erkcamera1

[ludom]

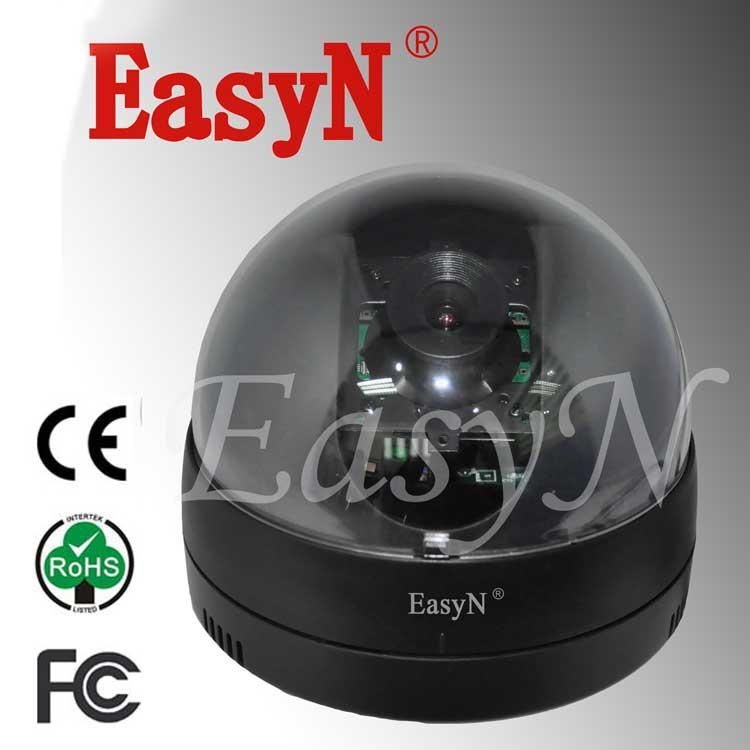

EasyN Dome Camera

Cheapass Indoor (I use it outdoor under an roof) Dome Camera I bought once on Ebay (I think for 60 dollar).

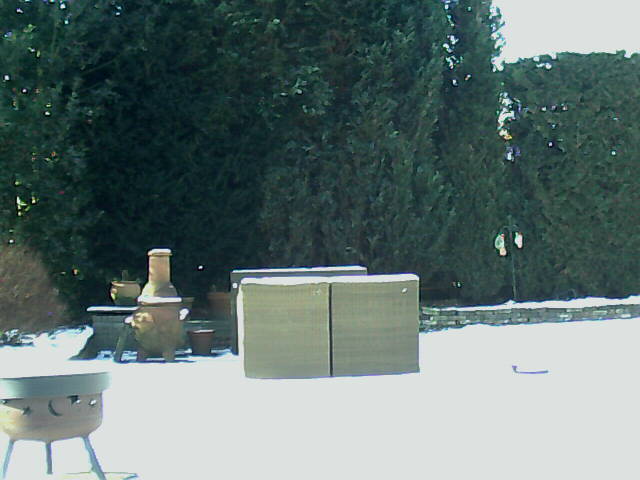

Day:


Night (with porch light), cam has no IR:


Night (without light), cam has no IR:


Image quality is very bad by night and less light, time to buy something better .

[neomess]

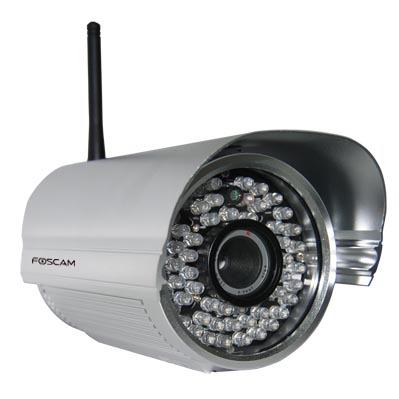

Foscam FI8905W

Specs

• Resolution: 640 x 480 Pixels(300k Pixels)
  Image Sensor: 1/5" Color CMOS Sensor
  Display Resolution: 640 x 480 Pixels(300k Pixels)
  Mini Lumination: 0.5Lux
  Lens Type: Glass Lens
  Image Compression: MJPEG
  Image Frame Rate: 15fps(VGA),30fps(QVGA)
  Flip Mirror Images: Vertical / Horizontal
  Light Frequency: 50Hz, 60Hz or Outdoor
  Video Parameters: Brightness, Contrast
  Ethernet: One 10/100Mbps RJ-45
  Wireless Standards: IEEE 802.11b/g
  Wireless Security: WEP & WPA & WPA2 Encryption
  Infrared Light: 60 IR LEDs,Night visibility up to 30 metres
  Storage Temperature: -10°C ~ 60° (14°F ~ 140°F)
  Storage Humidity: 0% ~ 90% non-condensing
  CPU: 2.0GHZ or above (suggested 3.0GHz)
  Memory Size: 256MB or above (suggested 1.0GHz)
  Display Card: 64M or above
  Supported OS: Microsoft Windows 2000/XP/Vista / 7 / 8 / Mac

Manual:
http://www.foscam.com/Private/ProductFi ... ual-46.pdf

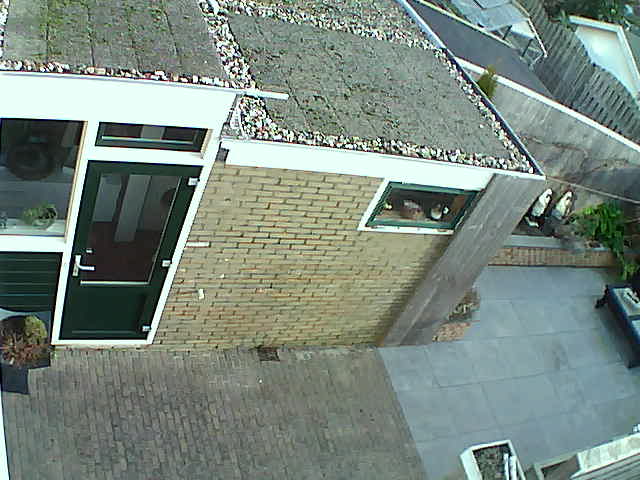

Day picture: (picture taken at 15:20)

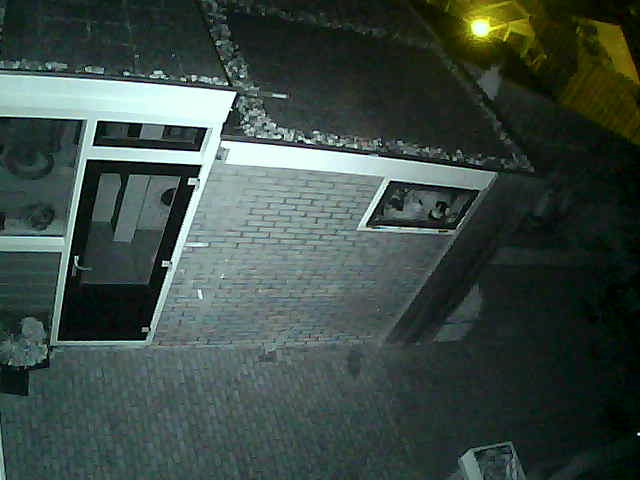

Night picture: (picture taken at 18:40)




Foscam FI8904W Xtra (The Xtra stands for a special model with 2.8mm lens that gives the camera a 60 degree angle)

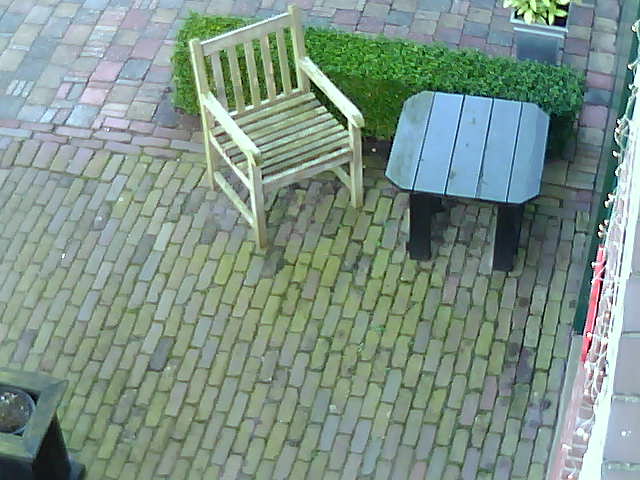

Day picture: (picture taken at 11:35)


Night picture: (picture taken at 04:00)

[Justin Renzom]

Some pics seem grainy...

[Edwin66]

Cropped a bit


< cropped for size.

Digoo W02F (cheap camera from China, It's cloud-based, but with some DNS knowledge, you can block the home-calling).

(at night 6 IR)

(Day-time)
